PT Mastar Perdana Indonesia

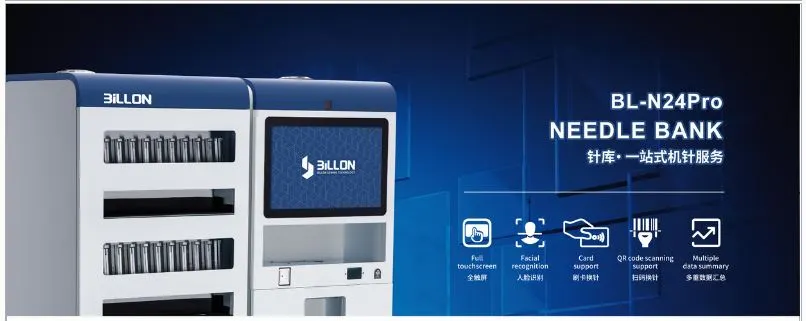

Billon BL-N24Pro

Needle Bank

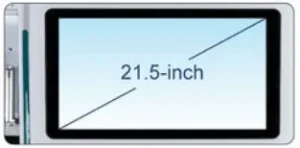

21.5-inch Full Touchscreen
Equipped with 21.5-inch HD operating screen, enhance user experience and improve visual comfort.

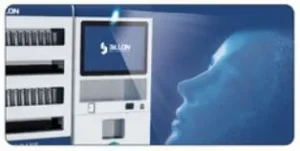

Facial Recognition
The newest facial recognition system achieves an accuracy rate of up to 99,9%

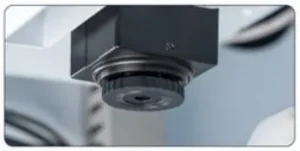

Ultra High Identification Camera
Accurately detects broken needles with an error margin of no more than 0.4mm.
Safer Method to Deliver the Needle
The needle out mode adopts the side push and slide fall, effectively avoiding the damage of the needle tip and ensuring the safety of the operator.
Indeoendent Recycle
Needle independent recycle, automatic numbering, pasting and sealing, keep the records for 2 years, easily to trace back.
Multiple Needles can be changed at one time
Support multi-number needles change mode to avoid repeated operation

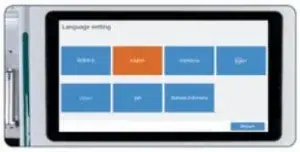

Multilingual Support
Multi-language support, according to customer needs to upgrade the language library.

Provide 24/7/365 Needle Service
Equipped with inventory warning system, it can set the needle inventory limit, to ensure 24 hours of needle service uninterrupted.
17 Items of Associated Data are Automatically Generated
Automatically generate Excel record, acuurate to the model number, pprocess needle attriutes, broken needle state and other 17 associated data.
Up to 7 Different Data Records
7 different data records including receiving, replenishment, statistics and details, support PC or USB flash disk to export, check data at any time and any place
Support LAN connection
PC in the same LAN can log in to control the background and check the device status.
Connect with ERP and MES
It can connect with ERP, MES and other platforms to provide different data interfaces according to different application scenarios to achieve digital management.
Electonic Storage Bin
More storage space to deposit stuff.
Low-maintenance and can be easily relocated.
It operates in various environments with little to no setup, offering flexibility in movement with four Fuma wheels, which are adjustable in height with a non-slip design.

Model Parameters
ModelBL-N24Pro
Needle cell 24 Cells
Number of needles in a single cell60 Needles
Total needle storage24*60 = 1440 Needles
Needle replacement speed12 Seconds One Needles
Facial recognition number500 Sheets
Voltage 220 V
Power 100 W
Product size127x48x174cm (LxWxH)
Outer box size132x56x192cm (LxWxH)
Net weight/Gross weight190kg / 200kg
